Palisade

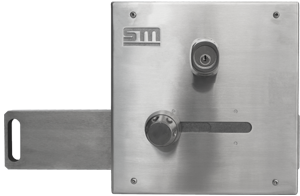

The Surelock McGill Palisade is a heavy-duty manual sliding-bar locking system for hinged gates with all-stainless-steel construction, providing security in harsh outdoor environments and conditions. The sliding handle operates the fortified steel sliding bar with a choice of controlled or single-motion egress to allow exit and emergency escape when required. The range includes two versions: the Palisade Pedestrian with a 50 mm (2") engagement, and the Palisade Vehicular with a 125 mm (5") engagement. requirements.
features
- Surface-mounted for maximum strength
- 50 mm (2”) x 12 mm (1/2”) sliding bar with a 50 mm (2”) throw
- Choice of automatic or manual deadlocking
- Grade 316 stainless steel construction for hostile environments and durability
- Independent padlocking
- Tested to over 1,000,000 cycles
- To suit rim profile cylinders (order cylinder separately)
- 12V DC as standard
benefits
- Tested and certified to LPS 1175: Issue 8 Security Rating D10
- Engineered for longevity and trouble-free service
- Retrofittable solution to upgrade existing gates
OPTIONAL ENHANCEMENTS
- Monitoring of bolt & lock status
- Cylinder guard protection available from our tested and accredited range
- Breakdome over thumbturn and lever handle to control exit
- 24V DC fail secure, 12V DC or 24V DC fail safe
- Further enhancements are available
Optional Entry Methods
Access Control
Key & Knob Handle
Optional Exit Methods
Key & Knob Handle
Knob Handle
Thumbturn
Ratings and Accreditations
Independently
Tested
Tested
Above performance results are based on independent third party testing or assessment on selected doorsets.
features
- Surface-mounted for maximum strength
- 100 mm (4”) x 15 mm (5/8”) sliding bar with a 125 mm (5”) throw
- Choice of automatic or manual deadlocking
- Grade 316 stainless steel construction for hostile environments and durability
- Independent padlocking
- Tested to over 1,000,000 cycles
- To suit rim profile cylinders (order cylinder separately)
- 12V DC as standard
benefits
- Tested and certified to LPS 1175: Issue 8 Security Rating G1
- Engineered for longevity and trouble-free service
- Retrofittable solution to upgrade existing gates
OPTIONAL ENHANCEMENTS
- Monitoring of bolt & lock status
- Cylinder guard protection available from our tested and accredited range
- Breakdome over thumbturn and lever handle to control exit
- 24V DC fail secure, 12V DC or 24V DC fail safe
- Further enhancements are available
Optional Entry Methods
Access Control
Key & Knob Handle
Optional Exit Methods
Key & Knob Handle
Knob Handle
Thumbturn
Ratings and Accreditations
Independently
Tested
Tested
Above performance results are based on independent third party testing or assessment on selected doorsets.
