Slimline Range
The Slimline range is a high performance multi-point locking system, tested and certified to multiple international standards against forced entry, blast, ballistic and fire protection. Slimline has been engineered to provide multiple entry and exit methods, making the range incredibly versatile and suitable for most applications.
Entry includes key, access control, or combination lock with lever handle, or complete hands-free motorised remote operation. A choice of controlled, or life-safety panic/emergency exit is available to meet a wide range of egress requirements. Manufactured in 316 stainless steel for hostile environments and durability.
Entry includes key, access control, or combination lock with lever handle, or complete hands-free motorised remote operation. A choice of controlled, or life-safety panic/emergency exit is available to meet a wide range of egress requirements. Manufactured in 316 stainless steel for hostile environments and durability.
.png)
features
- Available for mortice, or surface mounted
- 2 to 7 point bolting positions*
- 15 mm (5/8”) bolts x 25 mm (1”) throw
- 316 grade stainless steel construction for hostile environments and durability
- Proven rack & pinion driven
- Tested to over 1,000,000 cycles
- To suit Rim and Profile cylinders (order cylinder separately)
benefits
- Choice of securing upon door closure (automatic or manual)
- Certified to a range of international standards (see Product Performance Chart)
- Engineered for longevity and trouble-free service
- Provides the greatest selection of operational functionality
optional enhancements
- Monitoring of bolt & lock status
- Request to Exit (REX)
- External key override in case of power failure (order cylinder separately to activate)
- Cylinder guard protection available from our tested and accredited range
- Breakdome over thumbturn and lever handle to control exit
- Further enhancements are available
Optional Entry Methods
Key & Lever
Access Control
With Lever
With Lever
Remote Access with
Motorised Lock
Motorised Lock
Combination with Lever
Lockable Operator
Optional Exit Methods
Key & Lever
Thumbturn & Lever
Breakdome
Thumbturn & Lever
Access Control
With Lever
With Lever

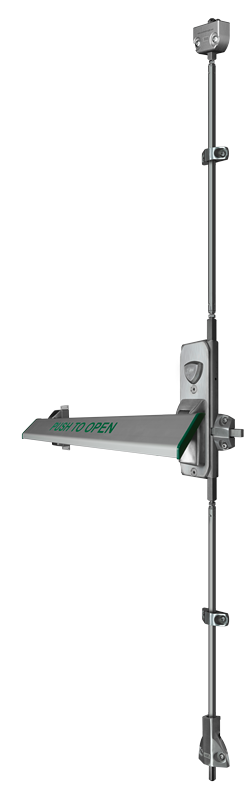

Panic Bar
(meets EN1125)
Push Pad
(meets EN179)
Straight Lever Handle
(meets EN179)
(meets EN179)
Access Control with
Motorised Lock
Motorised Lock
Remote Access with
Motorised Lock
Motorised Lock
Slimline International Combined Ratings and Accreditations
Below performance results are based on independent third party testing or assessment on selected doorsets.
Tested on specific doorsets up to:
LPS 1175
Tested on specific doorsets up to:
LPS 1175
Blast - For details contact
our Technical Dept
our Technical Dept
EN1125/EN179/UL305
Corrosion Tested
Up to EN 1670:GR5
Up to EN 1670:GR5
UL10C (upto 3 hours)
BS476 PT22/EN1631-1
BS476 PT22/EN1631-1
Independently
Tested
Tested
UL752/EN1522/23
FB1- FB7 & FSG
FB1- FB7 & FSG
For full performance information please click below.
