MSR

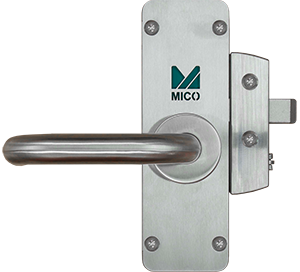

The MSR is a cost-effective single-point bolting device, designed for commercial doors securing high-value sites.
Single motion release by lever handle or panic bar, making this device suitable to secure exit doors and provide life-safety egress. An optional external trim provides key entry for authorized personnel. The robust design and stainless steel construction of the MSR will assist in protecting your facility and provide durability.
features
- Surface mounted for maximum strength
- 20mm (3/4”) x 16.5mm (5/8”) central bolt x 20mm (3/4”) throw
- Stainless steel construction for corrosion resistance and durability
- Tested to over 1,000,000 cycles
- Built in anti-thrust mechanism for enhanced security
benefits
- Door automatically secured against physical attack
- Built in anti-thrust mechanism for enhanced security
- Certified to a range of international standards (see Product Performance Chart)
- Engineered for longevity and trouble-free service
OPTIONAL ENHANCEMENTS
- Monitoring of bolt status
- External lockable trim to provide key entry for authorized personnel
- Further enhancements are available
Optional Entry Methods
Lockable Handle
Optional Exit Methods
Panic Bar
(meets EN1125)
Push Pad
(meets EN179)
Straight Lever Handle
(meets EN179)
(meets EN179)
Profile Lever
Panic Bar
(Tubular st/st)
MSR International Combined Ratings and Accreditations
Below performance results are based on independent third party testing or assessment on selected doorsets.
Tested on specific doorsets up to:
LPS 1175
Tested on specific doorsets up to:
LPS 1175
Corrosion Tested
Up to EN 1670:GR5
Up to EN 1670:GR5
SRB
Independently
Tested
Tested
For full performance information please click below.
