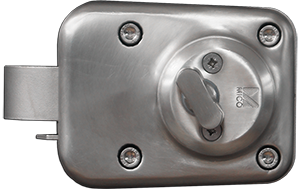

Rimlock
The Rimlock is the most popular key entry device for medium security applications. The Rimlock is self-handed, bi-directional, compatible with Rim cylinders from all leading manufacturers and providing latching and auto-deadlocking upon door closure.
Exit by thumbturn, or optional key control. The robust design and stainless steel construction of the Rimlock will assist in protecting your facility and provide durability.
Exit by thumbturn, or optional key control. The robust design and stainless steel construction of the Rimlock will assist in protecting your facility and provide durability.
features
- Surface mounted for maximum strength
- Self-handing and bi-directional
- Automatic securement upon door closure
- 25mm (1”) x 16mm (5/8”) bolt x 25mm (1”) throw
- Stainless steel construction for corrosion resistance and durability
- Tested to over 1,000,000 cycles
- To suit Rim and Profile cylinders (order cylinder separately)
benefits
- Choice to manually or automatically secure upon door closure
- Certified to a range of international standards (see Product Performance Chart)
- Engineered for longevity and trouble-free service
- Supplied with mounting plate and outward opening strike plate as standard
- Popular retrofit, to upgrade existing doors
OPTIONAL ENHANCEMENTS
- Monitoring of lock status
- Breakdome over thumbturn
- Cylinder guard protection available from our tested and accredited range
Optional Entry Methods
Key & Cylinder
Optional Exit Methods
Thumbturn & Lever
Rimlock International Combined Ratings and Accreditations
Below performance results are based on independent third party testing or assessment on selected doorsets.
Tested on specific doorsets up to:
LPS 1175
Tested on specific doorsets up to:
LPS 1175
Corrosion Tested
Up to EN 1670:GR5
Up to EN 1670:GR5
SRB
Independently
Tested
Tested
For full performance information please click below.
