Tyne

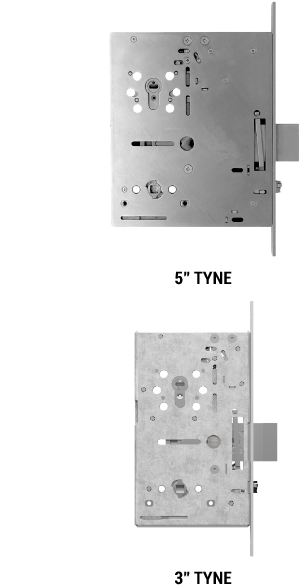

The Tyne is a high-performance, single-point mortice locking system available with a 127 mm (5") or a 76 mm (3") backset. Tested and certified to international standards for forced entry resistance, life safety, and fire protection, the range is suitable for nearly every application.
Entry options include key or access control with lever handle and a choice of controlled or life safety panic and emergency egress operators. Manufactured from Grade 316 stainless steel for hostile environments and durability.
Entry options include key or access control with lever handle and a choice of controlled or life safety panic and emergency egress operators. Manufactured from Grade 316 stainless steel for hostile environments and durability.
features
- Mortice fitted
- 40 mm (1 1/2”) x 15 mm (5/8”) bolt x 25 mm (1”) throw
- 127 mm (5”) & 76 mm (3") backset options
- Grade 316 stainless steel suitable for hostile environments
- Proven rack & pinion driven
- Tested to over 1,000,000 cycles
- To suit Rim or Euro Profile cylinders (order cylinder separately)
- 12V DC fail secure as standard
benefits
- Choice of securing upon door closure (automatic or manual)
- Certified to a range of international protection and life safety standards (see Product Performance Chart)
- Suitable for hostile environments
- Engineered for longevity and trouble-free service
OPTIONAL ENHANCEMENTS
- Monitoring of bolt & lock status
- External key override on access control locking systems, in case of power failure
- Cylinder guard protection available from our tested and accredited range (Euro Profile only)
- Breakdome over thumbturn to overide access control, and enable exit
- 24V DC fail secure, 12V DC or 24V DC fail safe
- Further enhancements are available
Optional Entry Methods
Key & Lever
Access Control
With Lever
With Lever
Optional Exit Methods
Key & Lever
Push Pad
Straight Lever Handle
(meets EN179)
(meets EN179)
Panic Bar
(meets UL 305)
Thumbturn & Lever
Breakdome
Thumbturn & Lever
Access Control
With Lever
With Lever
Tyne International Combined Ratings and Accreditations
Below performance results are based on independent third party testing or assessment on selected doorsets.
Tested on specific doorsets up to:
LPS 1175
Tested on specific doorsets up to:
LPS 1175
Independently
Tested
Tested
SRB
EN179
EN1125
EN1125
Corrosion Tested
Up to EN 1670:GR4
Up to EN 1670:GR4
EN1634-1
Certifire
BS 476-22
Certifire
BS 476-22
NIJ 0108.01
Level 4
Level 4
For full performance information please click below.
