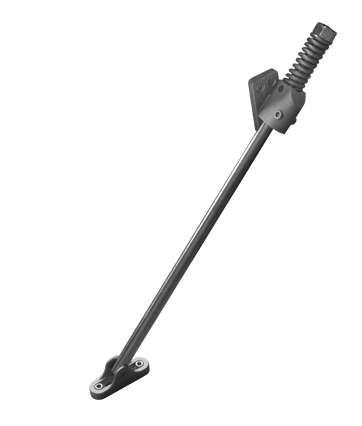

Medium and Heavy Duty Door Stops
The surface-mounted stainless steel door stop range has been designed to control the degree of opening with an inbuilt springing system to absorb shocks when the door is forcibly opened.
With brackets and arms manufactured entirely from Grade 316 stainless steel, the stops are recommended on doors which are subject to high usage or where external doors open out to hostile weather conditions such as strong winds.
features
- Each door stay can be fastened in position to suit degrees of opening ranging from 90° - 110°
- The hold open tension can be easily adjusted on site
- Manufactured using Grade 316 stainless steel
- A variety of arm lengths available to suit varying door leaf width
- Diameter of Medium duty 100 series is 12 mm and for the Heavy duty is 16 mm
- Heavy duty 200 series suitable for heavy or wide doors subject to more treacherous conditions
- Stainless steel machine screws for reinforced doors and frames are standard. Bolt-through options are available for retrofit installations on commercial hollow metal doors
- Can be installed along our automatic door operators to protect the ADO's arm from damage due to hyper-extension from forced opening
benefits
- Tested to 1,000,000 cycles
- Tested on specific doorsets up to LPS 1175:SR6
Door Stop International Combined Ratings and Accreditations
Independently
Tested
Tested
Above performance results are based on independent third party testing or assessment on selected doorsets.
