Touch Bar
Surelock McGill’s Touch Bar for the mortise Slimline is a life safety solution that is the first of its kind designed to reliably operate in environments at risk of ballistic, blast, and forced entry threats. It offers the highest levels of protection and functionality, combining reliable single-motion egress with exceptional security. The operator is designed explicitly for high-traffic locations such as data centers, industrial areas, and government buildings.
Our BHMA A156.3 Grade 1 and UL 305-listed mortise design prevents chaining of emergency doors, guaranteeing a clear exit path. With its distinctive 1" bolt retraction, the system—when combined with our Slimline multi-point lock—locks automatically on closure to block unauthorized entry.
Built from Grade 316 stainless steel, the Touch Bar endures over 1,000,000 cycles without compromising performance. Its design unites safety and resistance, ensuring dependable operation when time is most critical.

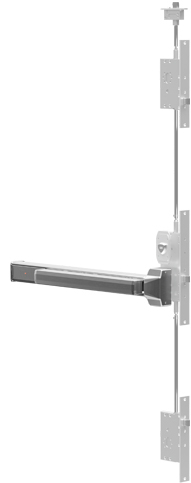

Mechanical Touch Bar
- Robust Grade 316 stainless steel construction for longevity and endurance
- Suitable for door sizes between 32" and 48", with custom widths available*
- Seamlessly pairs with the mortise Slimline with up to 5 bolts
- Retracts bolts by 1" (25 mm)
- Prohibits the chaining up of emergency escape doors
- Aesthetically pleasing design in brushed stainless steel as standard with custom finishes available*
- Tested and certified to over 1,000,000 cycles
- BHMA A156.3 Grade 1 & UL 305 listed
- Engineered for longevity and trouble-free service
- Request to Exit (REX)
- Blast-resistant enhancements
Ratings and Accreditations
Tested
Motorized Touch Bar
- Robust Grade 316 stainless steel construction for longevity and endurance
- Suitable for door sizes between 32" and 48", with custom widths available*
- Seamlessly pairs with the mortise Slimline with up to 5 bolts
- Retracts bolts by 1" (25 mm)
- Request to Exit (REX)
- Prohibits the chaining up of emergency escape doors
- Aesthetically pleasing design in brushed stainless steel as standard with custom finishes available*
- Motorized bolt retraction
- 24V DC fail secure as standard
- Preprogrammed control board & power supply unit
- Integrates with automatic door operators (ADOs)
- Tested and certified to over 1,000,000 cycles
- BHMA A156.3 Grade 1 & UL 305 listed
- Engineered for longevity and trouble-free service
- Blast-resistant enhancements
Ratings and Accreditations
Tested
Delayed Egress Touch Bar
- Robust Grade 316 stainless steel construction for longevity and endurance
- Suitable for door sizes between 32" and 48", with custom widths available*
- Seamlessly pairs with the mortise Slimline with up to 5 bolts
- Retracts bolts by 1" (25 mm)
- Request to Exit (REX) as standard
- Prohibits the chaining up of emergency escape doors
- Aesthetically pleasing design in brushed stainless steel as standard with custom finishes available*
- Motorized bolt retraction
- Preprogrammed control board & power supply unit
- Integrates with automatic door operators (ADOs)
- Factory- or field-programmed to specific local building fire codes
- Immediate exit in the event of a fire alarm
- LED light patterns signal different statuses
- Key override activates and deactivates the delayed egress function
- Seamless integration with access control and fire alarm systems
- Nuisance delay is configurable to 0-, 1-, 2- or 3-second delay before the delayed egress timer starts
- Release delay is configurable to a 15- or 30-second delay before the Touch Bar becomes unlocked and allows free escape
- 24V DC power supply (available on request)
- Tested and certified to over 1,000,000 cycles
- Blast-resistant enhancements as standard
- BHMA A156.3 Grade 1 & UL 305 listed
- Engineered for longevity and trouble-free service
Ratings and Accreditations
Tested
