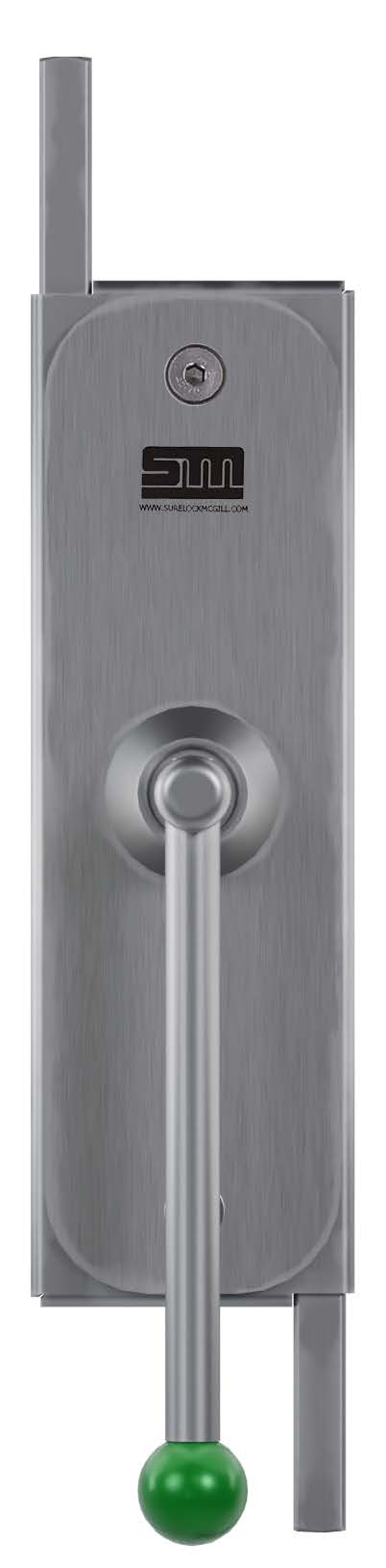

Coniston
The Coniston is a highly reliable, heavy-duty, manually thrown, cremone-style bolting system for use on oversized doors. The stainless steel, surface-mounted system offers high levels of pressure resistance, ideal for blast, acoustic, and sealing doors.
The Coniston features 1” bolts, a 1 7/8” bolt throw, and an adjustable roller strike to help pull oversized doors flush to the frame seals as the bolts are extended. The Coniston can be configured as exit-only, passage, or locking, with an additional deadlocking module available for enhanced security.
features
- Robust Grade 316 stainless steel construction for longevity and endurance
- Available in exit-only, external passage and external locking as well as 1- and 2-point configurations
- Compatible with swinging, sliding, and folding doors
- Non-handed - installs for any handing
- Can be configured to operate on any door size
- Secured with 1” bolts and 1 7/8” bolt throw
- Heavy-duty handle designed to operate as push or pull handle
- Adjustable roller strike pulls the door tight against frame seals as the bolts are extended
- Optional floor socket available
benefits
- Engineered for longevity and trouble-free service
- Highly reliable bolting solution
- Smooth and controlled operation
Optional Entry Methods
Key & Cylinder
Ball Lever
Handle
Handle
Optional Exit Methods
Key & Cylinder
Thumbturn
Ball Lever
Handle
Handle
Coniston International Combined Ratings and Accreditations
Independently
Tested
Tested
Above performance results are based on independent third party testing or assessment on selected doorsets.
