Blast Protection & Enhancements
There are four tiers of blast protection offered by the Slimline. Each level has been tested to at least 100kg of TNT at 15 meters and offer a selection of blast protection enhancements. All figures shown are for a Category III response.
Basic Level of Blast Protection:
System Configuration | Load Per Bolt kN / LBS | Peak Pressure KPa / PSI |
3-Point Outward Opening | 24.4 / 5485 | 70 / 10.2 |
5-Point Outward Opening | 24.4 / 5485 | 114 / 16.5 |
3-Point Inward Opening | 24.4 / 5485 | 42 / 6.1 |
5-Point Inward Opening | 24.4 / 5485 | 68 / 9.8 |
Peak pressure values are a guide based on static load calculations on a particular door construction. Calculations should be done for specific door sizes and constructions.
Enhanced Level of Blast Protection:
System Configuration | Load Per Bolt kN / LBS | Peak Pressure KPa / PSI |
3-Point Outward Opening | 35.3 / 7935 | 102 / 14.8 |
5-Point Outward Opening | 35.3 / 7935 | 166 / 24.1 |
3-Point Inward Opening | 35.3 / 7935 | 61 / 8.8 |
5-Point Inward Opening | 35.3 / 7935 | 99 / 14.4 |
Peak pressure values are a guide based on static load calculations on a particular door construction. Calculations should be done for specific door sizes and constructions.
High Level of Blast Protection:
System Configuration | Load Per Bolt kN / LBS | Peak Pressure KPa / PSI |
3-Point Outward Opening | 236 / 53053 | 681 / 98.7 |
5-Point Outward Opening | 236 / 53053 | 1108 / 160.7 |
3-Point Inward Opening | 236 / 53053 | 408 / 59.1 |
5-Point Inward Opening | 236 / 53053 | 664 / 96.3 |
Peak pressure values are a guide based on static load calculations on a particular door construction. Calculations should be done for specific door sizes and constructions.
Extreme Level of Blast Protection:
System Configuration | Load Per Bolt kN / LBS | Peak Pressure KPa / PSI |
3-Point Outward Opening | 1000 / 224800 | 2887 / 418 |
5-Point Outward Opening | 1000 / 224800 | 4694 / 680 |
3-Point Inward Opening | 1000 / 224800 | 1732 / 251 |
5-Point Inward Opening | 1000 / 224800 | 2817 / 408 |
Peak pressure values are a guide based on static load calculations on a particular door construction. Calculations should be done for specific door sizes and constructions.
Basic Blast Level
Enhanced Blast
Level (D15)
Level (D15)
High Blast Level
(D25)
(D25)
Extreme Blast Level (D50)

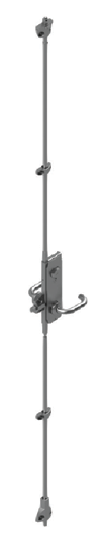

3-Point system
no additional enhancements
no additional enhancements
3-Point system
with enhanced
blast hardware
with enhanced
blast hardware
3-Point system
with high-level hardware
with high-level hardware

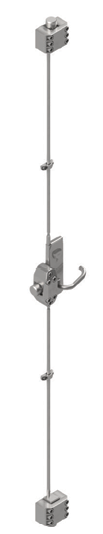

3-Point system
with extreme-level hardward
with extreme-level hardward
5-Point system with additional auxiliary
bolts that continue above/below handle - no additional blast enhancements
bolts that continue above/below handle - no additional blast enhancements
5-Point system with enhanced blast hardware and
additional auxiliary bolts that continue above/below handle
additional auxiliary bolts that continue above/below handle
5-Point system with high-level hardware, increased bolt size and additional auxiliary bolts
that continue
above/below handle
that continue
above/below handle

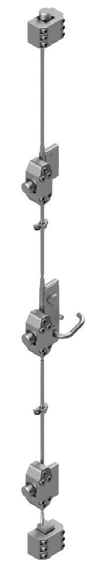

5-Point system with extreme-level hardware, increased bolt size, and additional auxiliary bolts that continue above/below handle
Blast Testing Footage
