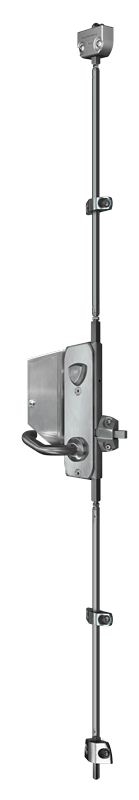

Slimline Combination Safe Lock Access
High-performance multi-point locking mechanism that automatically locks upon door closure to provide high security protection against forced entry, ballistic, and blast in one product.
The flexible design of the product allows the use of a mechanical or electronic combination safe lock to provide lock-down of a Slimline key locking or electronic access control system. After retracting the combination safe lock bolt, the Slimline provides manual entry through its configured means of entry. The system provides single motion egress through a lever handle or panic bar.
The Slimline has been designed with a common mounting footprint, enabling the addition of new modules to upgrade to the latest operational requirements.
The flexible design of the product allows the use of a mechanical or electronic combination safe lock to provide lock-down of a Slimline key locking or electronic access control system. After retracting the combination safe lock bolt, the Slimline provides manual entry through its configured means of entry. The system provides single motion egress through a lever handle or panic bar.
The Slimline has been designed with a common mounting footprint, enabling the addition of new modules to upgrade to the latest operational requirements.
operations
Entry - Combination lock is used to lock down the Slimline system. Externally retract the combination lock bolt and operate the Slimline system as configured with key access or electronic access control, then turn the lever handle to retract the locking bolts.
Exit - Single motion egress by lever handle or panic bar is standard.
features
- Key override: Storeroom function as standard - automatic locking upon door closure
- Key override: Classroom function is available - manual locking upon door closure
- Proven rack & pinion mechanism
- 5/8" stainless steel bolts with 1" throw
- Choice of exit device operators
- Tested to over 1,000,000 cycles
- Suitable for doors 7 feet tall with height extensions available
- Up to 5 active locking points
- Optional enhancement packs available for blast applications
- Optional remote monitoring of lock/bolt status
benefits
- Access control by specified electronic or mechanical combination safe lock
- Life safety device UL 305 and BS EN 179 & BS EN 1125 compliant
- Tested on specific doorsets up to 60 minutes of FEBR and LPS 1175:SR6
- Door securely locked when in closed position
- Engineered for longevity and trouble-free service
Optional Entry Methods
Access Control with
Motorised Lock
Motorised Lock
Remote Access with
Motorised Lock
Motorised Lock
Manual Key
Override
Combination
Optional Exit Methods
Access Control with
Motorised Lock
Motorised Lock
Remote Access with
Motorised Lock
Motorised Lock
Panic Bar
(meets UL 305)
Cranked Lever
(meets EN179)
Request To Exit
Slimline International Combined Ratings and Accreditations
Tested on specific doorsets up to LPS 1175:SR6
US State department FE/BR SD-STD-01
Tested on specific doorsets up to EN 1627
Blast - For details contact your sales rep
UL 305/EN 1125/
EN 179
EN 179
UL10C exceeds 3 hours/BS 476 PT 22/
EN 1631-1
EN 1631-1
UL752/EN1522/23
FB1- FB7 & FSG
FB1- FB7 & FSG
Independently
Tested
Tested
Above performance results are based on independent third party testing or assessment on selected doorsets.
