Do your doors require:
High security physical attack resistance.
Durability to frequent and heavy-handed usage.
Fire resistance accreditation.
Blast resistant features.
Aesthetic styling to match the environment.
Whilst locking systems provide a security solution for the leading edge of the door, outward opening doors in particular are vulnerable to attacks where the door leaf is ripped out of the frame from the hinge side.
As well as this, heavier industrial, blast, ballistic, and fire-rated doors require suitable hinges that will withstand the test of time, and the test of day-to-day heavy handed use.
Surelock McGill manufacture and supply hinges & hinge bolts that are suitable for the most demanding environments.
High Performance Hinges
- Strength to support heavy load doorsets
- 316 Stainless Steel construction for hostile environments
- Custom finishes available such as Polished Brass and Antique Bronze
- Sealed top and bottom knuckles
- Oilite bearings offering maintenance free operation
- HA6 & HA7 accredited to BS EN 1935:2002, CE Safety marked
- HA6 & HA7 are tested on selected doorsets to LPS 1175 SR2 – SR4
- Tested to over 1 million cycles

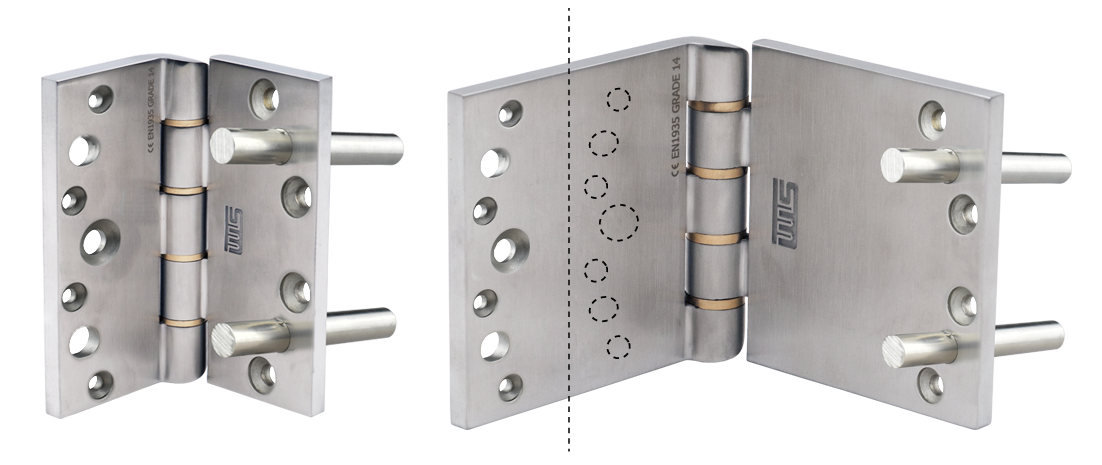

Introducing NEW Extended Hinges
Hinge width can be cut to suit customer door requirement
Further protection of the doorset
On doors needed to protect against the higher levels of physical attack Surelock McGill manufacture and supply stainless steel hinge (dog) bolts that embed into the frame when the door is closed, further hardening the door leaf against forced removalSee our solutions below for more details.
High-Performance Hinge Side Protection

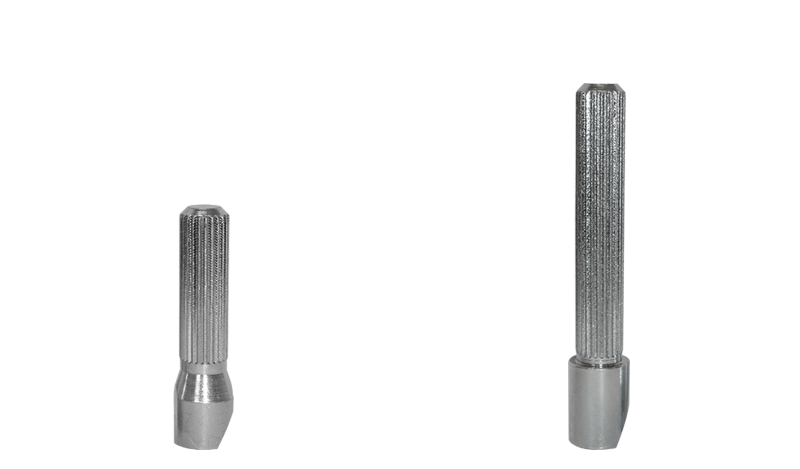

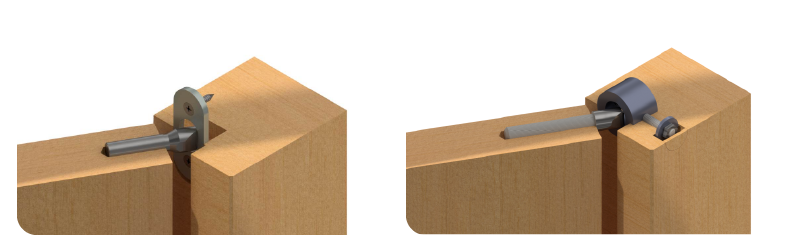

Concealed Hinge (Dog) Bolts
Stainless Steel Bolt
Bolt is concealed into the door leaf
Suitable for inward or outward opening doors
Tested to LPS 1175 SR2-SR4 on selected doorsets
Optional Frame Keep
Bolt is concealed into the door leaf
Suitable for inward or outward opening doors
Tested to LPS 1175 SR2-SR4 on selected doorsets
Optional Frame Keep

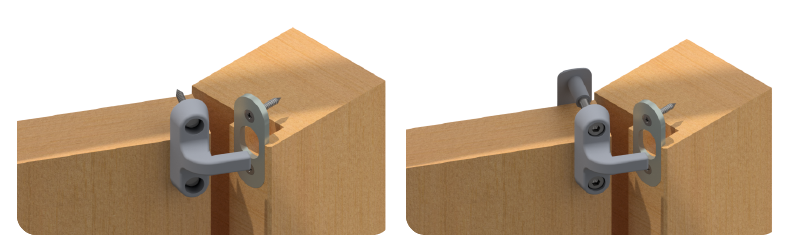

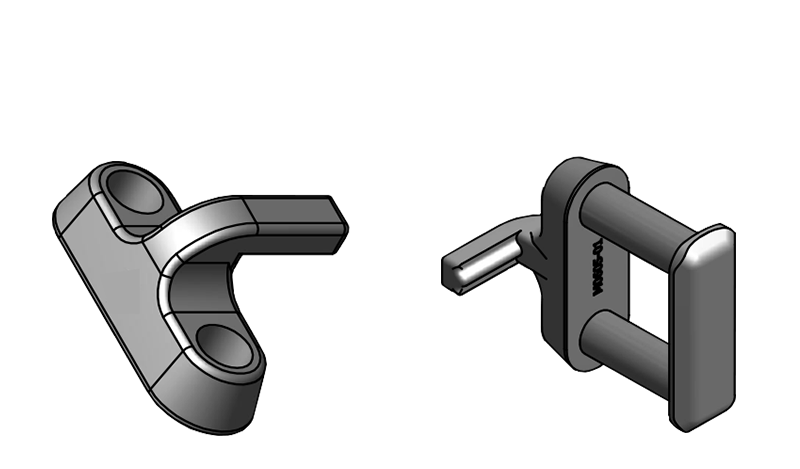

Surface-fixed Hinge (Dog) Bolts
Straps enable simple retro-fit installation
Unique curved bolt design hooks into a pre-drilled hole or keep within the door frame
Suitable for outward opening doors
Unique curved bolt design hooks into a pre-drilled hole or keep within the door frame
Suitable for outward opening doors
FOR SEALED AND SPECIALIST DOORS:
Rise & Fall Hinges
- Supports operation of sealed doors
- Robust stainless steel construction
- Grease nipple for easy maintenance
- Machined double helix design
The perfect solution to ensure smooth return of those high-performance environmental doors, including Flood & Acoustic.
At Surelock McGill we have experienced a global rise in interest for our high quality, traditional, & unique rise & fall hinges, originally designed for the rugged off-shore oil & gas platforms. Our latest manufacturing capability brings further improvements to this classic design for even smoother operation and long term-durability.
Designed originally for a plain lift-off hinge fitted top & bottom to support the moment force of the door, whilst a high quality single rise & fall hinge fitted centrally to provide the lift and fall action allows the door to return to it's original position. Each hinge fitted with a grease lubrication nipple to simplify maintenance. This combination of hinges resolved the almost impossible fitting tolerance of two rise & fall hinges acting simultaneously.
Special plate configurations can be accommodated to suit customer requirements.
At Surelock McGill we have experienced a global rise in interest for our high quality, traditional, & unique rise & fall hinges, originally designed for the rugged off-shore oil & gas platforms. Our latest manufacturing capability brings further improvements to this classic design for even smoother operation and long term-durability.
Designed originally for a plain lift-off hinge fitted top & bottom to support the moment force of the door, whilst a high quality single rise & fall hinge fitted centrally to provide the lift and fall action allows the door to return to it's original position. Each hinge fitted with a grease lubrication nipple to simplify maintenance. This combination of hinges resolved the almost impossible fitting tolerance of two rise & fall hinges acting simultaneously.
Special plate configurations can be accommodated to suit customer requirements.
