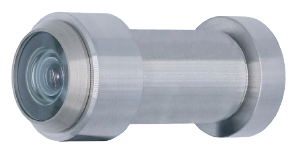

Ballistic Door Viewer
The Ballistic Resistant Door Viewer provides resistance against a wide range of ballistic threats. Its modular design means that it is suitable for use in many environments including commercial, residential and military facilities. The Ballistic Rated Door Viewer has been tested to several international standards providing certifications suitable for most countries throughout the world.
features
- Satin stainless-steel finish with brass and other patented options available
- Suitable for internal and external applications
- Body diameter of 29.8mm
- Adjustable (up to 100mm) to suit various door and panel thickness
- Up to 170° range of vision
- Optional drill resistant inner privacy plate made from manganese
- Designed using standard optics and internal ballistics inserts
- Door viewer to suit door thickness 43mm-60mm as standard
- Thinner or thicker door solutions available – please speak to our technical department
benefits
- Extensive range of ballistic testing
- Blast resistance (tested on selected doosets)
- Fire resistance (tested on selected doorsets)
RELEVANT BALLISTIC STANDARDS
- BSEN 1522/23
- BSEN 1063
Ratings and Accreditations
EN1522/23
FB3- FB7
FB3- FB7
EN1522 - BR3 to BR7
& SG1 Solid Slug
& SG1 Solid Slug
Protecting against fragmentation
(grenades/pipe bombs)
(grenades/pipe bombs)
BS476: Part 20/22: 1987 FD60
Above performance results are based on independent third party testing or assessment on selected doorsets.
