Single Point Locking

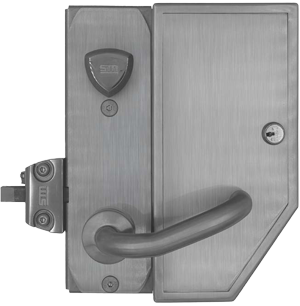

Tyburn

The Tyburn offers the ability to lock/unlock the single-point locking system using customer chosen combination lock, or key. With single action emergency escape always provided from the inside, even with the external combination lock secured. The level of protection is based on the choice of combination lock, or key selection.

Designed from the Surelock McGill flagship ‘Slimline’ range of locks and fitted with additional anti-tamper features to provide protection against both physical and surreptitious threats.

Download Tyburn PDF

features

Surface mounted with 5mm (3/16”) load-plate for ease of fitting
15mm (0.59”) x 25mm (1”) throw stainless steel bolt
Tested to over 1,000,000 cycles
Emergency exit as standard, unless selected otherwise
Optional remote monitoring of lock/bolt status
12V DC fail secure, as standard on access control versions. Cabling can be surface run or concealed into the door
Audit trail capability (dependent on combination lock installed, or access control configuration)
International and UK combination lock footprints accommodated

benefits

Automatic re-securement of the bolt ensures the door is not compromised
End-pressure attack resistance to the bolt
I-Restraint suitable for both inward and outward opening doors
Concealed locking system with key providing access to combination lock code change
Simplified installation via load-plate fixing method

OPTIONAL ENHANCEMENTS

Choice of combination lock, or key (both manufacturer & model) provide level of security
Daytime access control and key override of access control lock, in case of power failure
Monitoring of bolt and deadlock status (standard on daytime access control)
