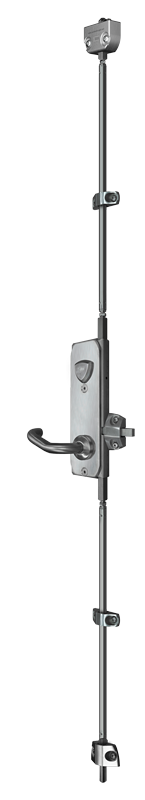

Slimline Access Control Solenoid
High performance, stainless steel, multi-point locking device auto locking upon door closure providing high security protection, ballistic and blast resistance in one product.The flexible design of the product enables operation with all access control systems. Optional external mechanical key override available providing mechanical backup when required. Panic and emergency escape to BSEN 179/1125 is available in situations where panic or emergency means of escape are required.The Slimline range has been engineered with a common fixing footprint, enabling other alternative modules to be retrofitted to meet changes in operational requirement later.
operations
Entry - Activating the access control, the device will automatically unlock allowing the user to manually retract all shoot bolting points using the lever handle. Upon door closure the bolts will automatically engage and fully secure.
Entry - Activating the access control, the device will automatically unlock allowing the user to manually retract all shoot bolting points using the lever handle. Upon door closure the bolts will automatically engage and fully secure.
Entry - Activating the access control, the device will automatically unlock allowing the user to manually retract all shoot bolting points using the lever handle. Upon door closure the bolts will automatically engage and fully secure.
features
- Full 316 grade stainless steel construction as standard
- Surface mounted or mortice fitted solutions
- Automatic re-securing upon door closure
- Proven rack & pinion method
- 15mm (0.59") x 25mm (0.98") throw stainless steel bolts
- Choice of exit device operators
- Tested to over 1,000,000 cycles
- Suitable for doors 2.2m (86.61”) high and extensions available for taller doorsets
- Optional bolt enhancement packs available for blast applications
- Bolt and deadlocking status monitoring as standard
- 12V DC fail secure, as standard
- 24V DC fail secure, 12V DC or 24V DC fail safe options
- Cranked lever handle as standard
- Alternative direction & additional auxiliary bolts can be added
benefits
- Automatic unlocking and relocking
- Tested on specific doorsets up to LPS 1175:SR6
- Life safety device BSEN 179/1125 and UL305 compliant
- Optional remote monitoring of lock/bolt status
- Engineered for longevity and trouble free service
Optional Entry Methods
Access Control
With Lever
Manual Key
Override
Optional Exit Methods
Access Control
With Lever
Panic Bar
(meets EN1125)
Push Pad
(meets EN179)
Silver Lever
(meets EN179)
Cranked lever
(meets EN179)
Request To Exit
Thumbturn & Lever
Breakdome
Thumbturn & Lever
Slimline International Combined Ratings and Accreditations
Below performance results are based on independent third party testing or assessment on selected doorsets.
Tested on specific doorsets up to:
LPS 1175
Tested on specific doorsets up to:
LPS 1175
Blast - For details contact
our Technical Dept
EN1125/EN179/UL305
UL10C (upto 3 hours)
BS476 PT22/EN1631-1
UL752/EN1522/23
FB1- FB7 & FSG
For full performance information please click below.
