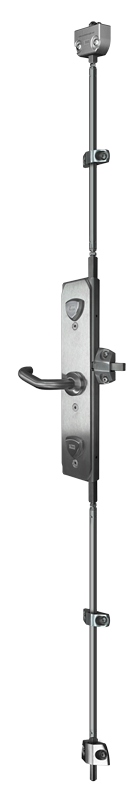

Slimline Fail Safe & Secure
The Surelock McGill Slimline Fail Safe & Secure is a multi-threat multi-point locking system that enables access controlled entry and exit into a building with the addition of a power failure mode, enabling mechanical key entry and single-handed exit into and from a building or specific area where power has been lost or alarm triggered. In both access control and mechanical modes the multi-point deadlocking device secures automatically upon closure.
operations
Entry - Access control entry to release the deadlock (with optional key override in case of power failure) and lever handle to retract the bolting system. Upon door closure the bolts will automatically engage and secure if used with appropriate restraint keep. If power is lost the locking system will be in a fail secure mode.
Exit - Access control to release the deadlock and lever handle to retract the bolting system. If power is lost to the system, the system allows immediate single-handed means of escape by operating the lever handle. The Slimline can additionally be connected to a fire alarm or break glass panel to activate this mode.
Exit - Access control to release the deadlock and lever handle to retract the bolting system. If power is lost to the system, the system allows immediate single-handed means of escape by operating the lever handle. The Slimline can additionally be connected to a fire alarm or break glass panel to activate this mode.
features
- Full 316 grade stainless steel construction as standard
- Surface mounted or mortice fitted solutions
- 15mm (0.59") x 25mm (0.98") throw stainless steel bolts
- Stainless Steel cranked lever handle provides one handed means of exit during alarms or power failure
- Tested to over 1,000,000 cycles
- Suitable for doors 2.2m (86.61”) high and extensions available for taller doorsets
- Steel core fixings and bolt keeps supplied suitable for timber frame – alternative keeps can be supplied upon request
- Optional Bolt Enhancement packs available for blast applications
- Bolt and deadlocking status monitoring as standard for each lock
- 12V DC as standard, 24V DC optional
- Fail Safe and Fail Secure
- Cylinder guard protection available up to LPS 1175:SR6 available
benefits
- Swipe in & out but free exit in the case of power failure whilst maintaining security
- Solenoid bolt retraction
- Mechanical key entry in case of power failure - a high level of security is maintained during these instances
- Tested on specific doorsets up to LPS 1175:SR6
- Engineered for longevity and trouble-free service
Optional Entry Methods
Access Control
With Lever
Manual Key
Override
Power Failure Mode
No Entry
Manual Key
Override
Optional Exit Methods
Access Control
With Lever
Power Failure Mode
Cranked lever
(meets EN179)
Silver Lever
(meets EN179)
Slimline International Combined Ratings and Accreditations
Below performance results are based on independent third party testing or assessment on selected doorsets.
Tested on specific doorsets up to:
LPS 1175
Tested on specific doorsets up to:
LPS 1175
Blast - For details contact
our Technical Dept
EN1125/EN179/UL305
UL10C (upto 3 hours)
BS476 PT22/EN1631-1
UL752/EN1522/23
FB1- FB7 & FSG
For full performance information please click below.
