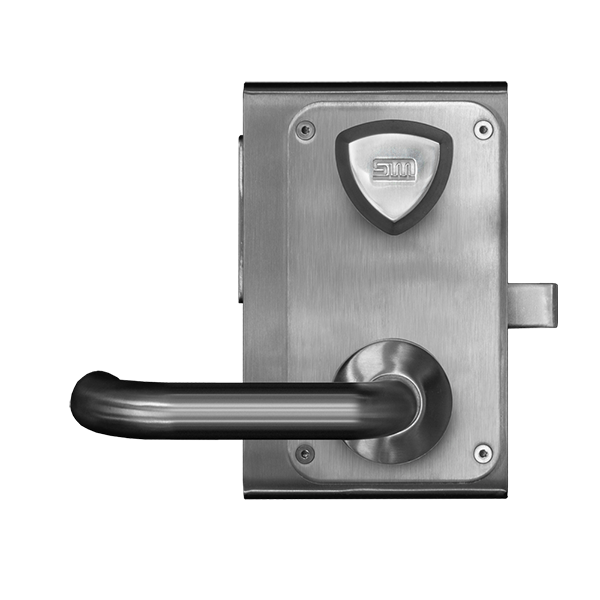

Stirling Access Control Auto-Deadlocking
A compact high performance single-point, surface mounted locking system with automatic bolting upon door closure. Access control operation to unlock and lever handle to release, automatic bolting and deadlocking to provide final security upon door closure. Manufactured in 316 stainless steel for all, including hostile environments.
operations
Entry - Activate access control and depress lever handle to retract bolt. External key override facility in case of power failure fitted as standard (order cylinder separately to activate)
Exit - Activate access control and depress lever handle to retract bolt
Exit - Activate access control and depress lever handle to retract bolt
features
- Surface mounted for maximum strength
- Automatic re-securement upon door closure
- 19mm (3/4”) square bolt x 25mm (1”) throw
- 316 grade stainless steel construction for hostile environments and durability
- Proven rack & pinion driven
- Anti-thrust resistance built in as standard (seven times BS 3621)
- Cycle tested to over 1,000,000 cycles
- Steel template provides for fast installation
- Monitoring of bolt & lock status
benefits
- Surface mounted for maximum strength
- Automatic re-securement upon door closure
- 19mm (3/4”) square bolt x 25mm (1”) throw
- 316 grade stainless steel construction for hostile environments and durability
- Proven rack & pinion driven
- Cycle tested to over 1,000,000 cycles
- Steel template provides for fast installation
- Monitoring of bolt & lock status
OPTIONAL ENHANCEMENTS
- Request to exit facility
- Cylinder guard protection available from our tested and accredited range
- Egress via key or break-dome over turnknob with lever handle, life-safety panic bar (aluminium, or full stainless-steel), push pad, or lever handle
- External key override in case of power failure (order cylinder separately to activate)
- Further enhancements are available
Optional Entry Methods
Access Control
Manual Key
Override
Optional Exit Methods
Access Control
Panic Bar
(meets EN1125)
Push Pad
(meets EN179)
Request To Exit
Breakdome
Thumbturn & Lever
Key & Lever
Silver Lever
(meets EN179)
Panic Bar
(Tubular st/st)
Profile Lever
Stirling International Combined Ratings and Accreditations
Below performance results are based on independent third party testing or assessment on selected doorsets.
Tested on specific doorsets up to:
LPS 1175
Tested on specific doorsets up to:
LPS 1175
Blast - For details contact
our Technical Dept
EN1125/EN179/UL305
EN1634-1
Certifire
UL752/EN1522/23
FB1- FB7 & FSG
Corrosion Tested
Up to EN 1670:GR4
STS 202:BR3
SRB
For full performance information please click below.
