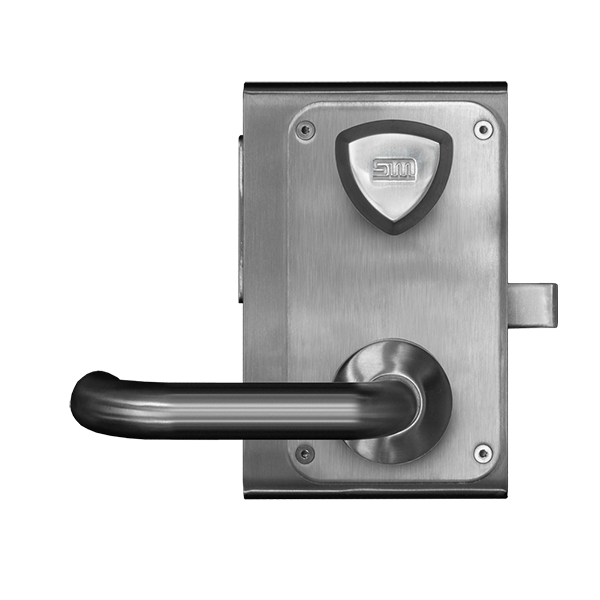

Stirling Access Control Auto-Deadlocking
A compact high performance single-point, surface mounted locking system with automatic bolting upon door closure. Access control operation to unlock and lever handle to release, automatic bolting and deadlocking to provide final security upon door closure. Manufactured in 316 stainless steel for all, including hostile environments.
operations
Entry - Activate access control and depress lever handle to retract bolt. External key override facility in case of power failure fitted as standard (order cylinder separately to activate)
Exit - Activate access control and depress lever handle to retract bolt
Exit - Activate access control and depress lever handle to retract bolt
features
- Surface mounted for maximum strength
- Automatic re-securement upon door closure
- 19mm (3/4”) square bolt x 25mm (1”) throw
- 316 grade stainless steel construction for hostile environments and durability
- Proven rack & pinion driven
- Cycle tested to over 1,000,000 cycles
- Steel template provides for fast installation
- Monitoring of bolt & lock status
- Request to exit facility on all single handed panic & emergency exit systems
benefits
- Door automatically secured in closed position
- Certified to a range of international standards (see Product Performance Chart)
- Engineered for longevity and trouble-free service
- Easy retrofit, to upgrade existing doors
OPTIONAL ENHANCEMENTS
- Cylinder guard protection available from our tested and accredited range
- Egress via key or break-dome over turnknob with lever handle, life-safety panic bar (aluminium, or full stainless-steel), push pad, or lever handle
- External key override in case of power failure (order cylinder separately to activate)
- Further enhancements are available
Optional Entry Methods
Access Control
Manual Key
Override
Optional Exit Methods
Access Control
Key & Lever
Profile Lever
Request To Exit
Panic Bar
(meets EN1125)
Push Pad
(meets EN179)
Panic Bar
(Tubular st/st)
Breakdome
Thumbturn & Lever
Straight Lever Handle
(meets EN179)
(meets EN179)
Stirling International Combined Ratings and Accreditations
Tested on specific doorsets up to LPS 1175:SR4
Blast - For details contact
our Technical Dept
our Technical Dept
EN1125/EN179/UL305
EN1634-1
Certifire
Certifire
UL752/EN1522/23
FB1- FB7 & FSG
FB1- FB7 & FSG
Independently
Tested
Tested
Corrosion Tested
Up to EN 1670:GR4
Up to EN 1670:GR4
STS 202:BR3
SRB
SRB
Above performance results are based on independent third party testing or assessment on selected doorsets.
