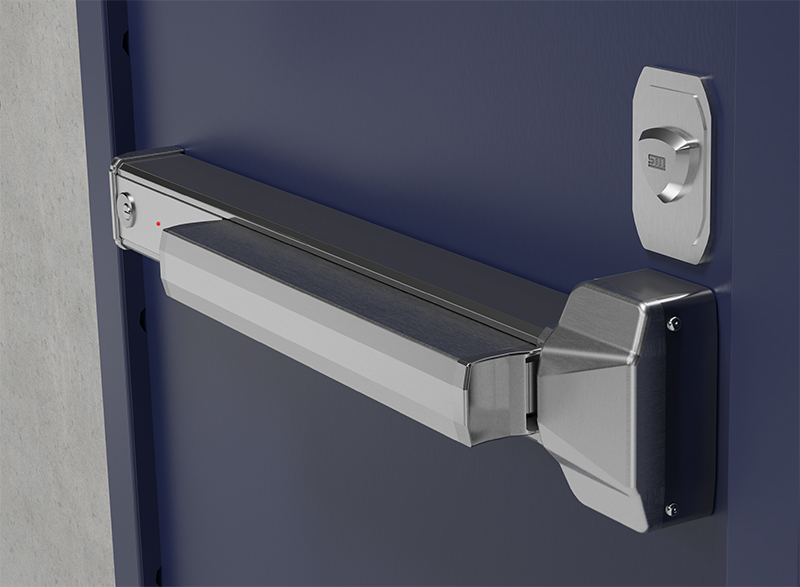

The Surelock McGill Touch Bar expands the Slimline mortised multi-point locking system with additional exit device options.
It combines life safety performance with electromechanical capability while protecting against blast, ballistic, and forced entry threats in a single integrated solution.
The Touch Bar and mortised Slimline meet BHMA A156.3 Grade 1 requirements for high-traffic environments and are UL 305-listed for panic exit device performance.
The mortise Slimline system carries additional certifications when installed as part of a complete door assembly. It meets ASTM F3038 for forced entry resistance and UL 752 for ballistic resistance. It also meets ASTM F2927 for blast resistance.
Constructed from Grade 316 stainless steel, the Touch Bar has been tested to over 1,000,000 cycles to support long-term performance in demanding environments.

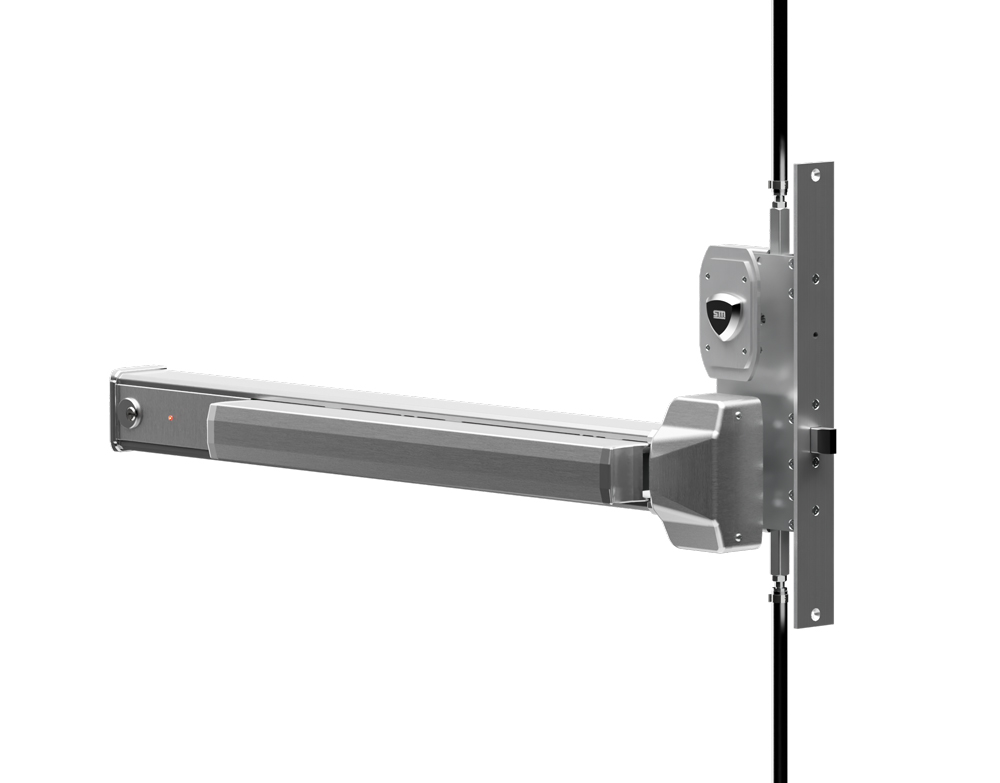

The mortised Slimline locks automatically on door closure to prevent unauthorized entry while maintaining free egress. The Touch Bar provides emergency exit and prevents doors being chained shut, maintaining a clear and accessible exit path.
Typical Deployment Environments
Government
Paired with the mortise Slimline, the Touch Bar provides emergency egress in high-traffic, mission-critical facilities. The system is designed to withstand blast, ballistic, and forced entry threats and integrates with automated door operators and delayed egress functionality where required.
Built from Grade 316 stainless steel, the Touch Bar provides corrosion resistance for demanding industrial environments. Testing exceeds the 500,000 loaded cycles required for BHMA A156.3 Grade 1 certification. Combined with the Slimline platform, the system delivers secure access while supporting safe egress.
Data Centers
When paired with the Slimline platform, the Touch Bar supports life safety and secure access control as part of a complete door assembly. Delayed egress functionality can also be used to slow unauthorized movement while maintaining emergency escape capability.
Available Configurations:
The Touch Bar is suitable for door sizes between 32" and 48", with custom widths, and includes three configurations:
Mechanical
Single-motion egress designed for heavy use
Delayed Egress
Programmable egress delay with alarm and LED countdown, integrating with access control and fire systems
