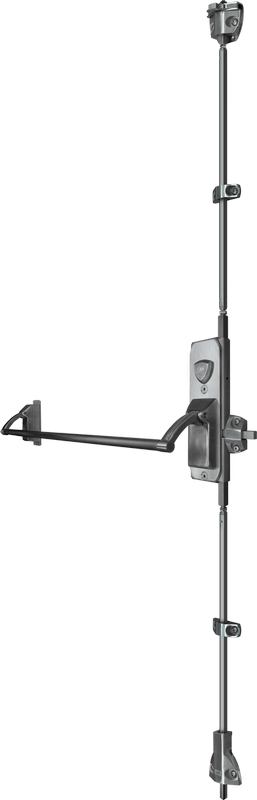

Slimline Key Access
High-performance multi-point locking mechanism that automatically locks upon door closure to provide high security protection against forced entry, ballistic, and blast in one product.
The flexible design of the product enables external key access with single motion egress at all times by lever handle or panic bar.
The Slimline has been designed with a common mounting footprint, enabling the addition of new modules to upgrade to the latest operational requirements.
.png)
Entry - External mechanical key and lever handle are used to release the deadlock function and retract the locking bolts.
Upon door closure, the bolts will automatically extend and deadlock.
Exit - Single motion egress by either lever handle or panic bar is standard. An alternative method of egress can be provided by key and lever handle operation for non-life safety applications.
- Surface-mounted or mortise-mounted
- Storeroom function as standard - automatic locking upon door closure
- Classroom function is available - manual locking upon door closure
- Proven rack & pinion mechanism
- 5/8" stainless steel bolts with 1" throw
- Choice of exit device operators
- Tested to over 1,000,000 cycles
- Suitable for doors 7 feet tall with height extensions available
- Up to 5 active locking points
- Optional enhancement packs available for blast applications
- Optional remote monitoring of lock/bolt status
- Automatic relocking as standard
- Life safety device UL 305 and BS EN 179 & BS EN 1125 compliant
- Tested on specific door assemblies up to 60 minutes of FEBR and LPS 1175:SR6
- Door securely locked when in closed position
- Engineered for longevity and trouble-free service
Optional Entry Methods
Motorised Lock
Motorised Lock
Optional Exit Methods
Motorised Lock
Motorised Lock
Slimline International Combined Ratings and Accreditations
Tested on specific doorsets up to LPS 1175:SR6
US State department FE/BR SD-STD-01
Tested on specific doorsets up to EN 1627
EN 179
EN 1631-1
FB1- FB7 & FSG
Tested
