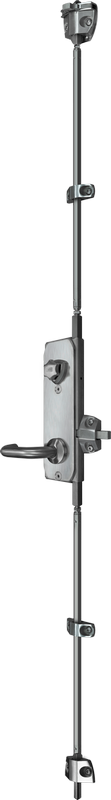

Slimline Key Release Locking
High performance multi-point locking mechanisms providing automatic locking upon door closureoffering high security protection, ballistic and blast resistance in one product.The flexible design of the product enables external key access whilst facilitating the ability to escape through the locked door in situations where panic or emergency means of escape are required.The Slimline range has been engineered with a common fixing footprint, enabling other alternative modules to be retrofitted to meet future changes in operational requirement later.
operations
Entry - External mechanical key and lever handle is used to release the deadlock function and retract the bolting system.
Upon door closure the bolts will automatically engage and deadlock.
Exit - A single handed means of escape is provided by either lever handle, push pad or full width panic plate. A further alternative method of egress can be provided by key or thumbturn & lever handle operation.
Upon door closure the bolts will automatically engage and deadlock.
Exit - A single handed means of escape is provided by either lever handle, push pad or full width panic plate. A further alternative method of egress can be provided by key or thumbturn & lever handle operation.
features
- Full 316 grade stainless steel construction as standard
- Surface mounted or mortice fitted solutions
- Automatic bolting upon door closure
- Manual locking option available
- Proven rack & pinion method
- 15mm (0.59") x 25mm (0.98") throw stainless steel bolts
- Choice of exit device operators
- Tested to over 1,000,000 cycles
- Suitable for doors 2.2m (86.61”) high and extensions available for taller doorsets
- Alternative direction & additional auxiliary bolts can be added
- Optional bolt enhancement packs available for blast applications
- Optional remote monitoring of lock/bolt status
- Straight lever handle as standard
benefits
- Automatic relocking as standard
- Life safety device BSEN 179/1125 and UL305 compliant
- Tested on specific doorsets up to LPS 1175:SR6
- Door securely locked when in closed position
- Engineered for longevity and trouble free service
Optional Entry Methods
Key & Lever
Optional Exit Methods
Panic Bar
(meets EN1125)
Push Pad
(meets EN179)
Cranked lever
(meets EN179)
Silver Lever
(meets EN179)
Thumbturn & Lever
Key & Lever
Slimline International Combined Ratings and Accreditations
Below performance results are based on independent third party testing or assessment on selected doorsets.
Tested on specific doorsets up to:
LPS 1175
Tested on specific doorsets up to:
LPS 1175
Blast - For details contact
our Technical Dept
EN1125/EN179/UL305
UL10C (upto 3 hours)
BS476 PT22/EN1631-1
UL752/EN1522/23
FB1- FB7 & FSG
For full performance information please click below.
