Extreme Resistance - Protecting Buildings from Blast

Blast Resistant Locking Solutions

Blast resistant equipment can be found in a range of environments, from oil & gas platforms to government & military buildings. Ensuring the correct specification of blast-proof doorsets can help mitigate risk in the event of an explosion or other dangerous event.

Whatever your blast requirement, Surelock McGill offer a range of locking solutions suitable for basic levels through to more extreme levels of blast protection, together with security and life-safety demands.

See Blast Resistant Solutions

STANDARD LEVEL SLIMLINE

Extreme Resistance - Protecting Buildings from Blast

For STANDARD LEVEL blast applications
Inward and outward opening test data available
Suitable for 3 or more bolting points

System Configuration	Load Per Bolt kN / LBS	Peak Pressure KPa / PSI*
3-Point Outward Opening	24.4 / 5485	70 / 10.1*
5-Point Outward Opening	24.4 / 5485	114 / 16.5*

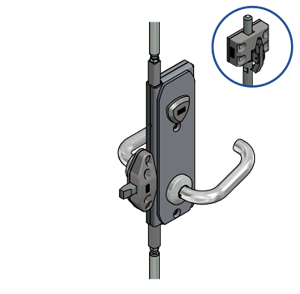

ENHANCED LEVEL SLIMLINE

Extreme Resistance - Protecting Buildings from Blast

For ENHANCED LEVEL blast applications
Inward and outward opening test data available
Suitable for 3 or more bolting points

System Configuration	Load Per Bolt kN / LBS	Peak Pressure KPa / PSI*
3-Point Outward Opening	35.4 / 7598	102 / 14.7*
5-Point Outward Opening	35.4 / 7598	166 / 24.0*

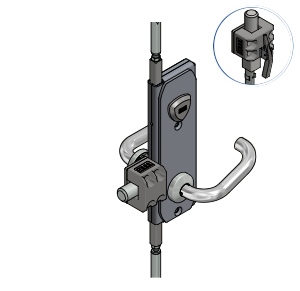

HIGH LEVEL SLIMLINE

Extreme Resistance - Protecting Buildings from Blast

For HIGH LEVEL blast applications
Inward and outward opening test data available
Suitable for 3 or more bolting points

System Configuration	Load Per Bolt kN / LBS	Peak Pressure KPa / PSI*
3-Point Outward Opening	236 / 53K	681 / 98.7*
5-Point Outward Opening	236 / 53K	1108 / 160.7*

*Peak pressure values are a guide based on static load calculations on a particular door construction. Calculations should be done for specific door sizes and constructions.

See Slimline Blast Enhancement Range

Blast Performance Hinges

Stainless steel mounting plate & knuckles
Self-lubricating bearings for regular usage
Blast performance tested
Great for extremely high load doorsets

See Full Hinges Range

Bespoke Solution

Our solutions do not end here.

Surelock McGill has for almost 60 years manufactured bespoke locking solutions and other architectural hardware that have met the demands of many organisations and governments around the world, including high-security, ballistic and blast specifications.

See our list of solutions below to find out more.

Bespoke Solutions

Blast Resistant Solutions

Ballistic Resistant Solutions

Physical Security Solutions
